FEIG Electronic TST EWA4-C1020 Door control unit with reversing contactor
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Other customers also bought
delivery time: 16 - 30 working days
Feig Electronic electronic reversing contactor control for doors, for 3-phase current drives up to 4.0 kW with electronic or mechanical limit switch, with 24V DC power supply (max. 2000mA) for external consumers, incl. connection cable with CEE plug

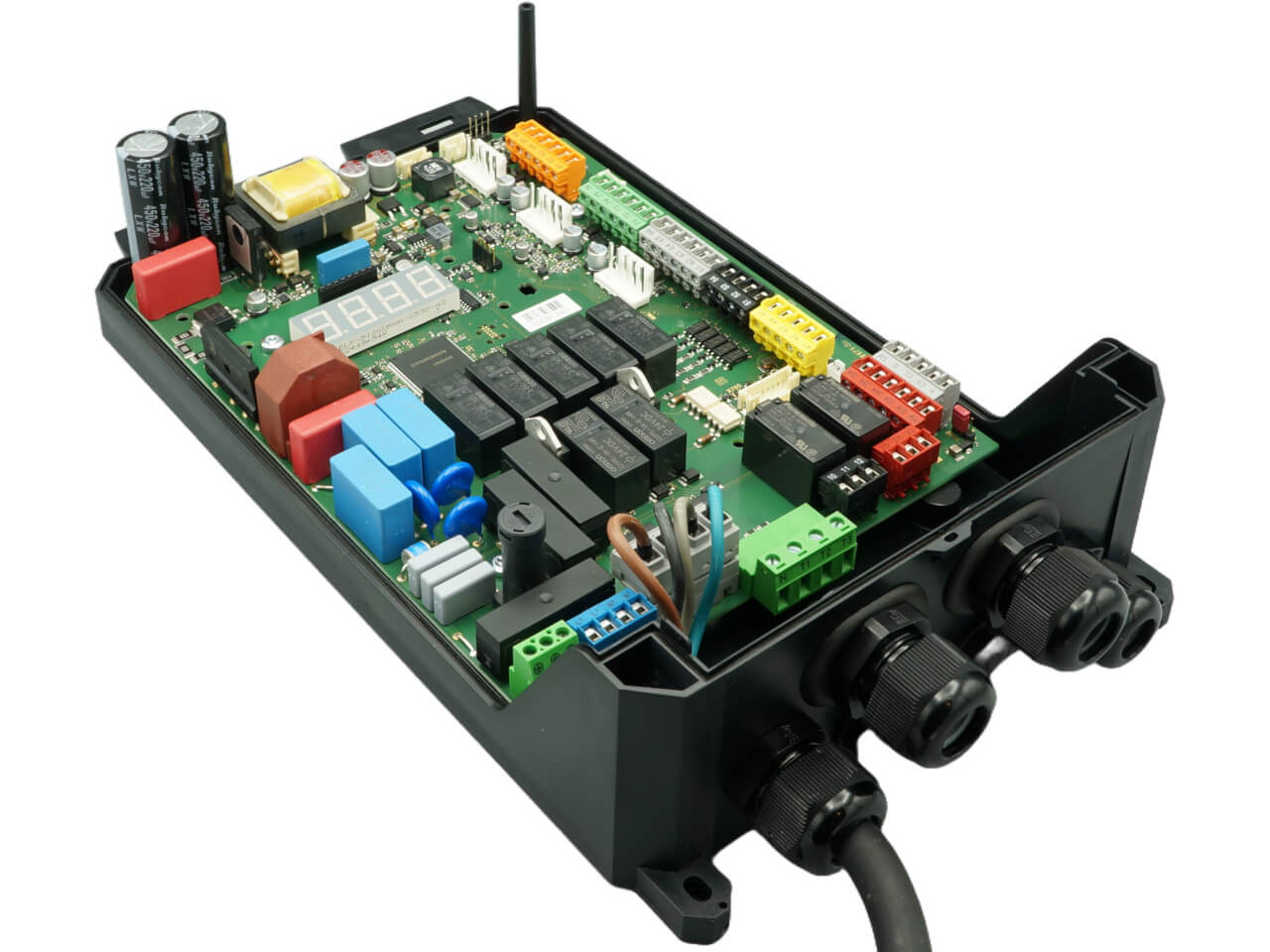

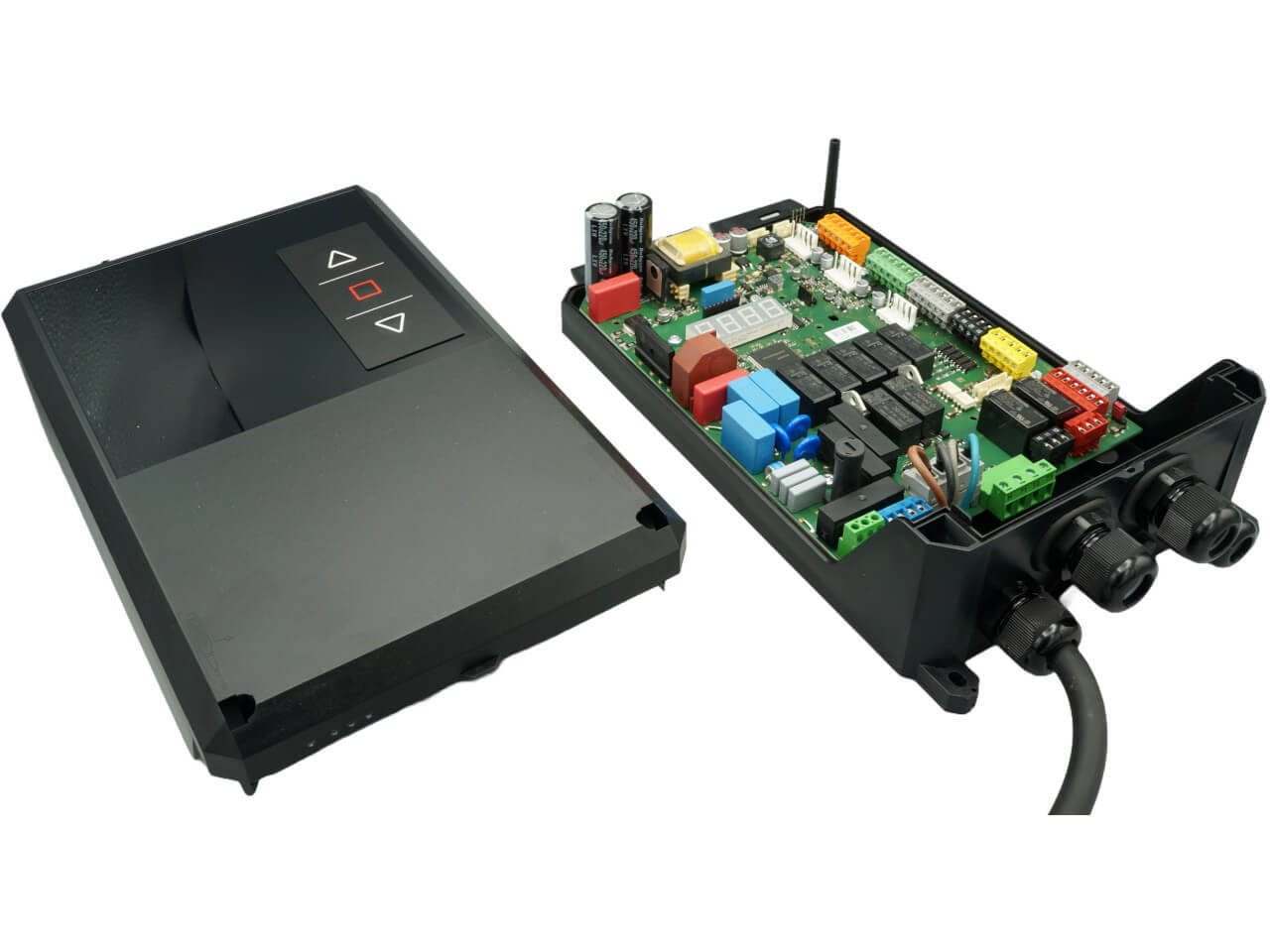

FEIG Electronic TST EWA4-C1020 electronic reversing contactor control
The TST EWA4-C1020 from FEIG Electronic is a modern, type-tested comfort door control unit with electronic reversing contactor – ideal for industrial doors and barriers.
Product highlights
- Flexible application options thanks to extensive parameterisation and versatile connection options
- With integrated FEIG Advanced Door Bus for easy connection of sensors
- Convenient operation and parameterisation via Bluetooth interface using the FEIG TST Toolbox app
- Highest safety standards thanks to integrated second shut-off circuit in accordance with DIN EN 12453
- Easy installation thanks to colour-coded, plug-in terminal blocks
Technical features
- Connected load up to 4.0 kW at 400 V
- Integrated safety features: two safety edge inputs
- Second cut-off circuit in accordance with EN 12453
- Ten digital inputs and two potential-free relay outputs as well as three switchable 24 V test outputs
- Controlled 24 VDC control voltage, short-circuit-proof thanks to central switching regulator
- Compatible with mechanical and digital limit switches
| Max. Operating Temperature: | +50 °C |
|---|---|
| Min. Operating Temperature: | -20 °C |
| Modes of Operation: | Automatic, Hold-to-Run |
| Programmable Relay Contact: | 2 |
| Supply Voltage: | 1N~230 V, 3N~400 V |
